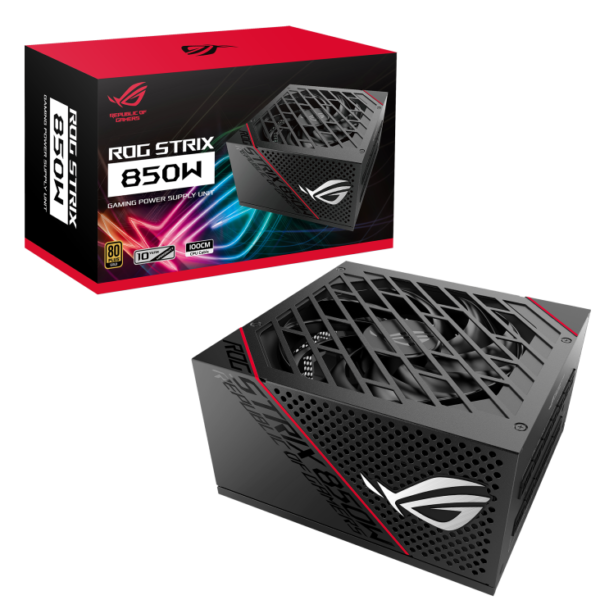

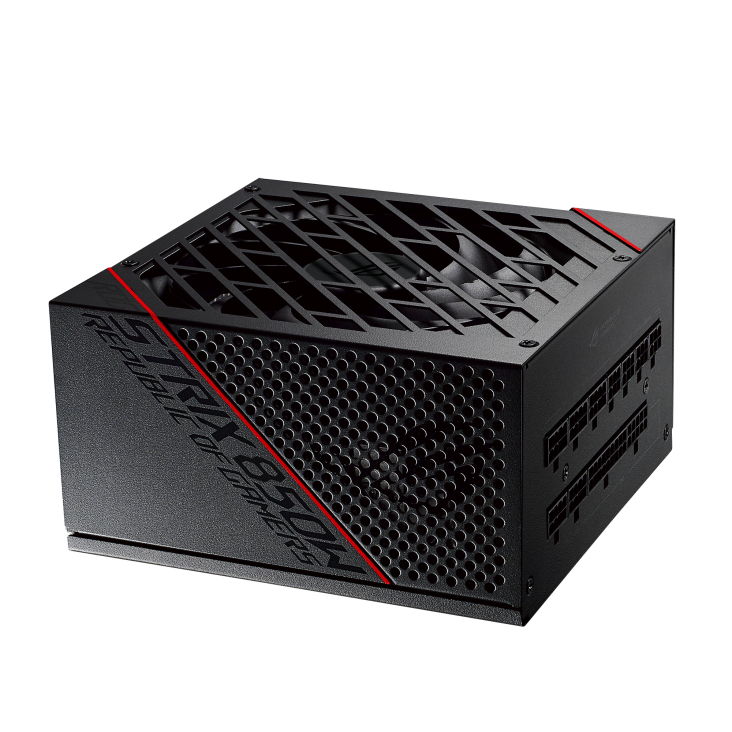

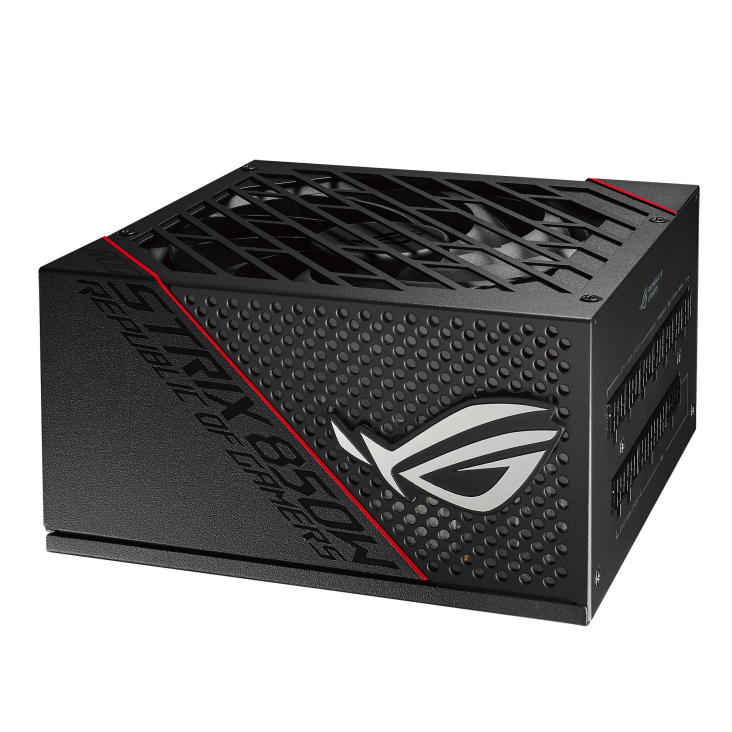

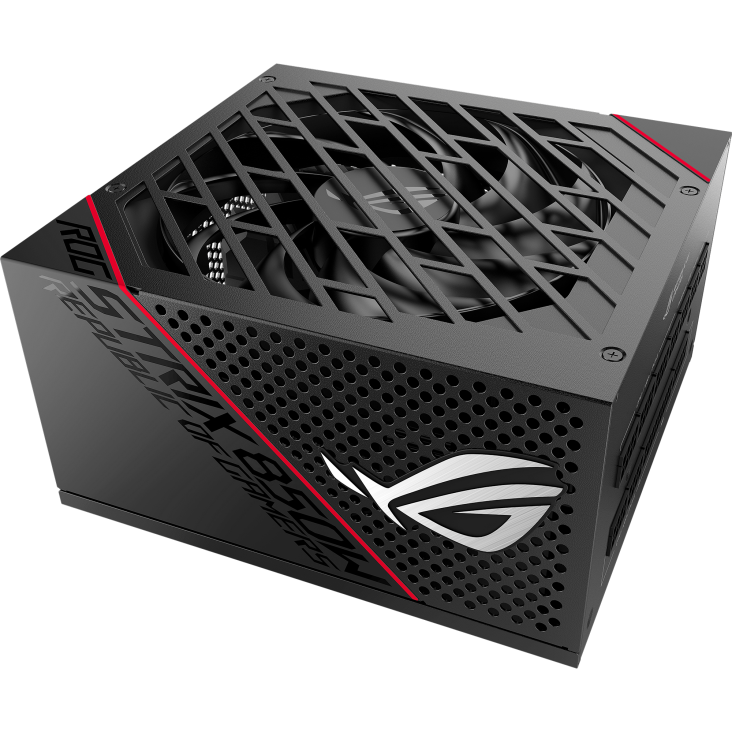

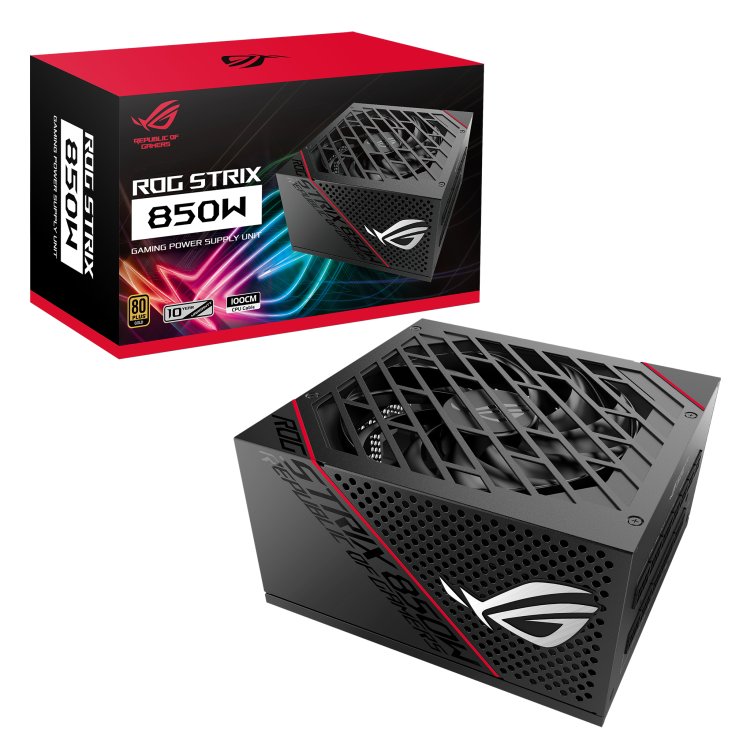

Asus ROG STRIX 850G 850Watt 80 Plus Gold Certification Fully Modular Power Supply Unit
Frozen Silence
The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. Massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.
ROG Heatsinks
Let it sink in
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside ROG Strix Series PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.
80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
Cosmetic Customization
A e s t h e t i c

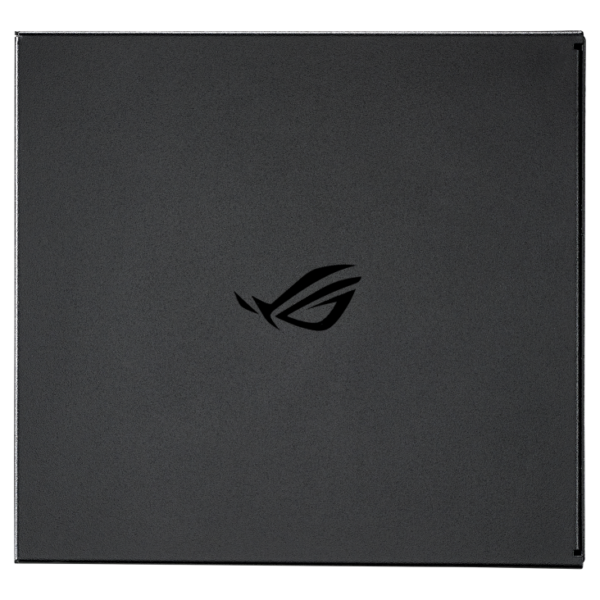

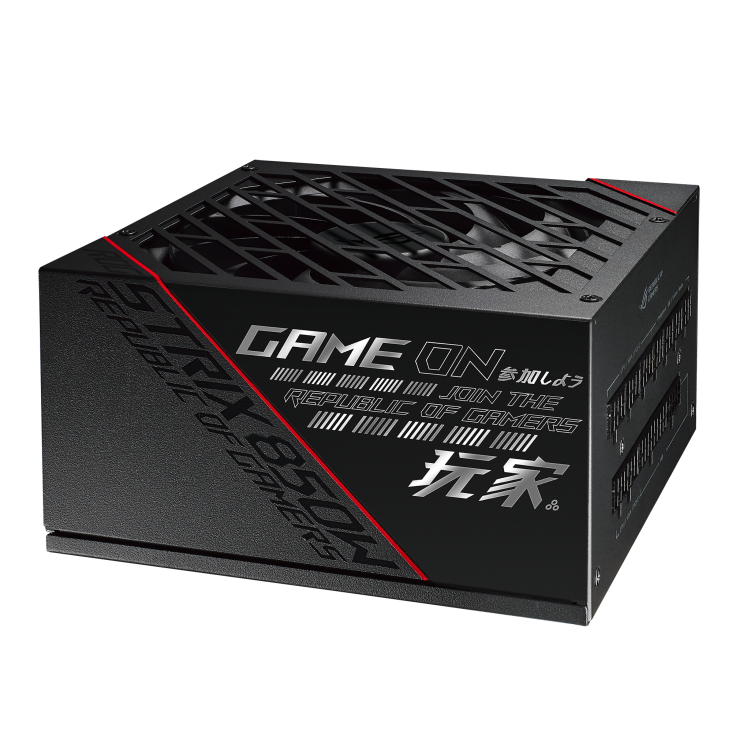

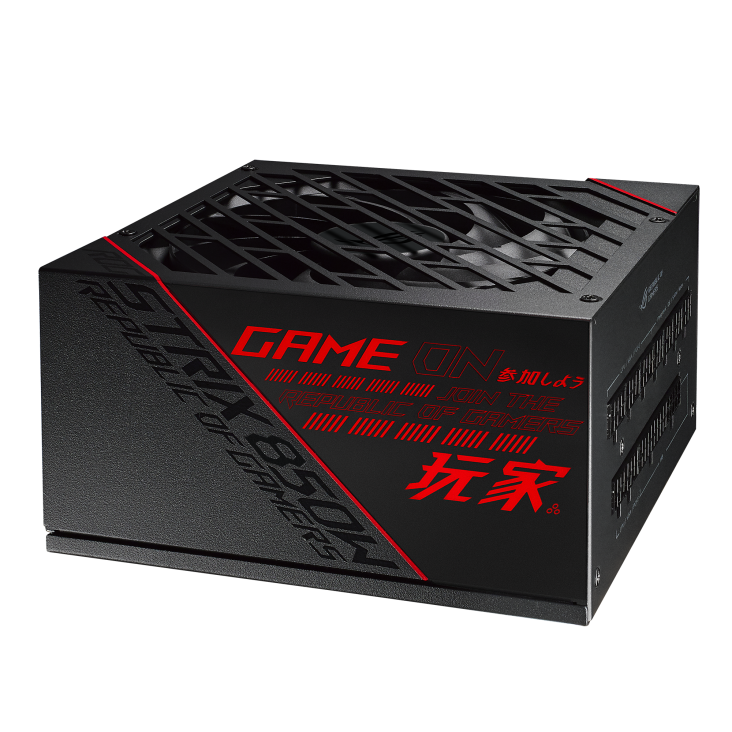

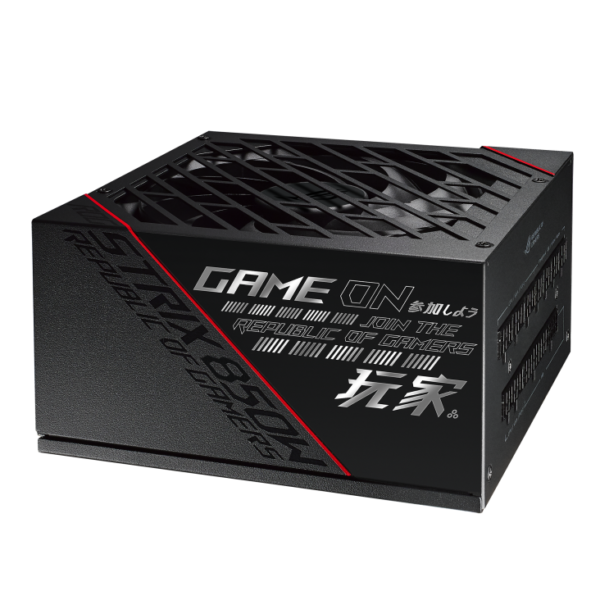

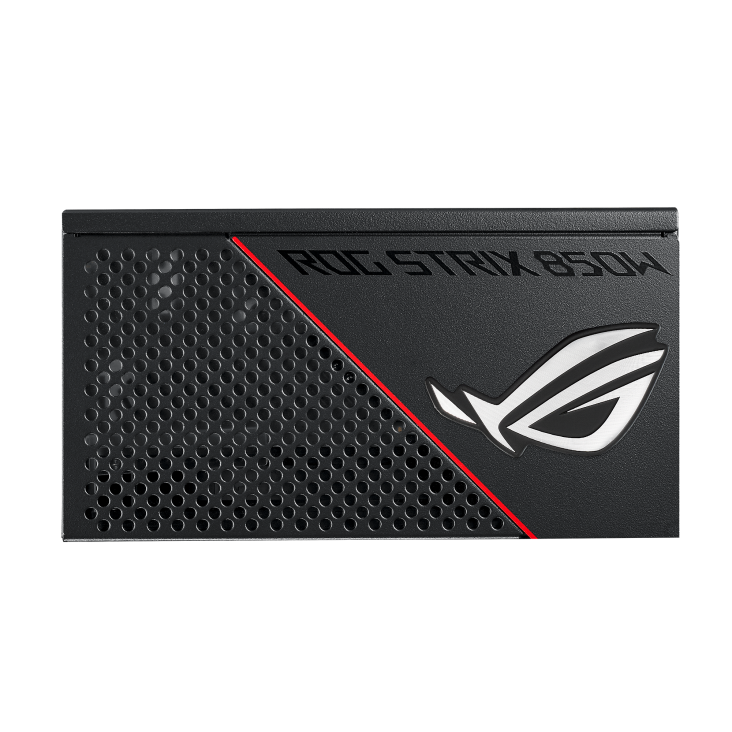

Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.
Model
ROG-STRIX-850G
Intel Specification
ATX12V
PFC Type
Active PFC
Dimensions
16 x 15 x 8.6 Centimeter
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
RGB Connector
NO

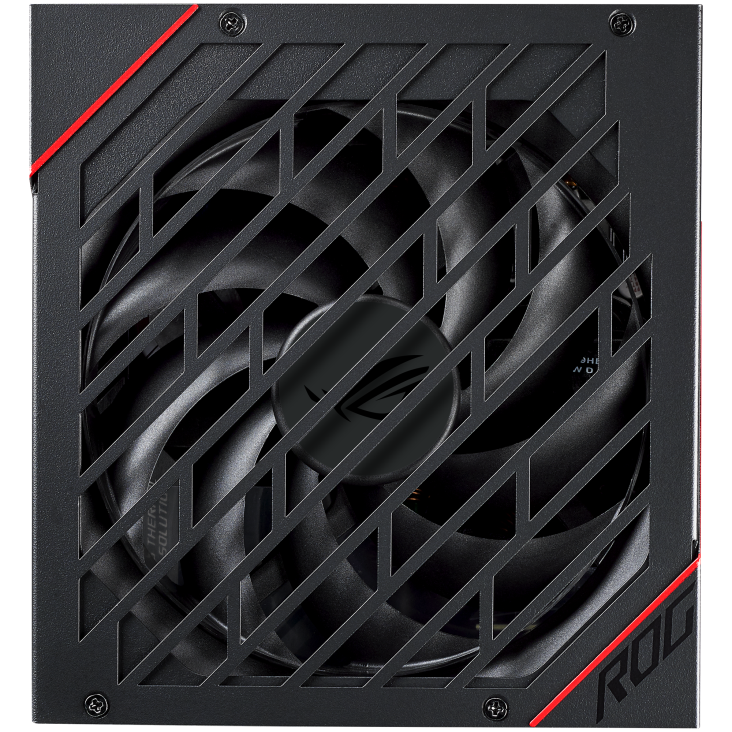

Fan Size
135 mm
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 70A 0.3A 3A
Combined Load
100W 100W 840W 3.6W 15W
Total Output
850W

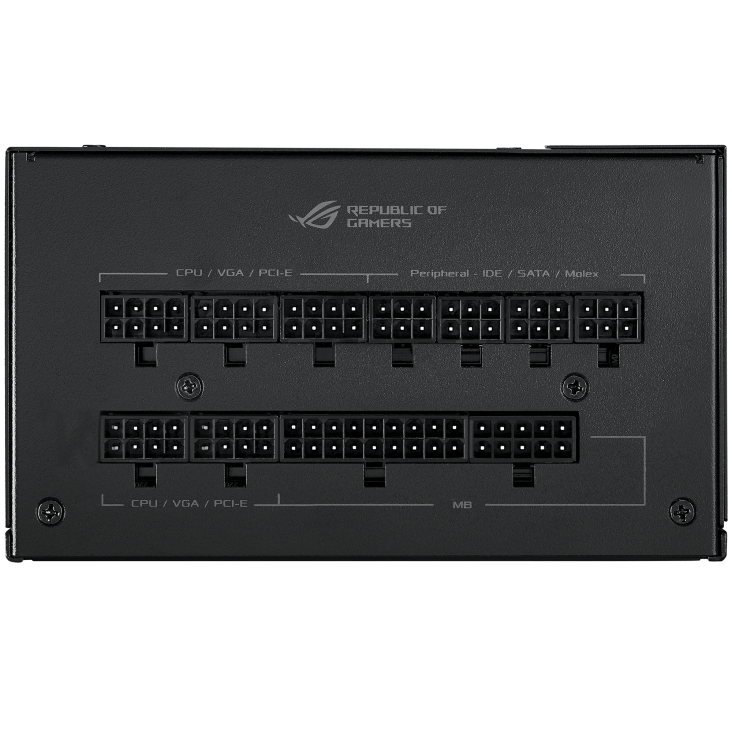

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 6
SATA x 8
PERIPHERAL x 6
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x2 (1000mm)
PCIE 1-to-2 Cable x3 (675+75mm)
SATA 1-to-4 Cable x1 (410+150+150+150mm)
SATA 1-to-4 Cable x1 (450+120+120+120mm)
Peripheral 1-to-3 Cable x2 (450+120+120mm)
ROG badge x 2
ROG logo magnet x 1
ROG label x 3
*MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.
Weight
Single Card (KG) 1.825
Product Weight (with packing) (KG) 3.48
Cybenetics Noise Level Certification
NA

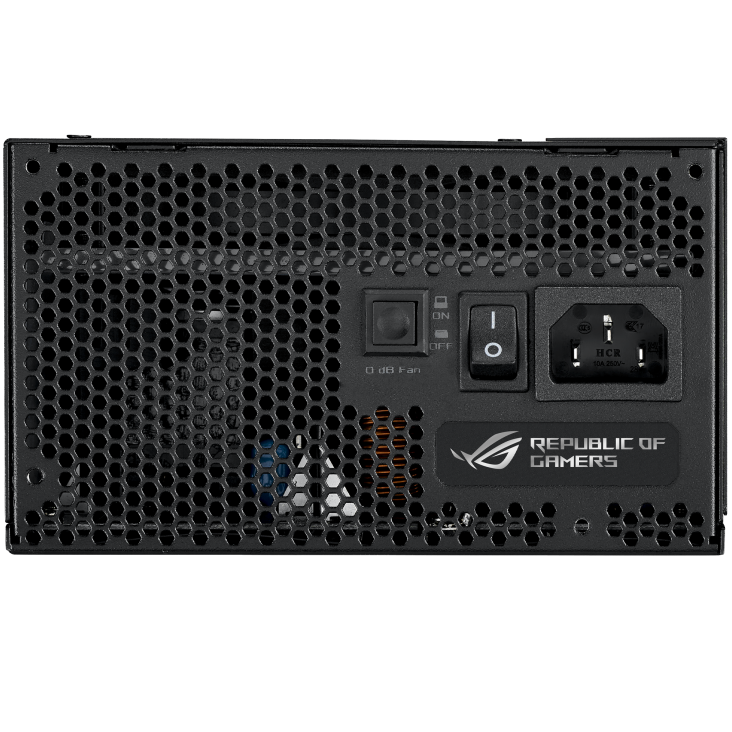

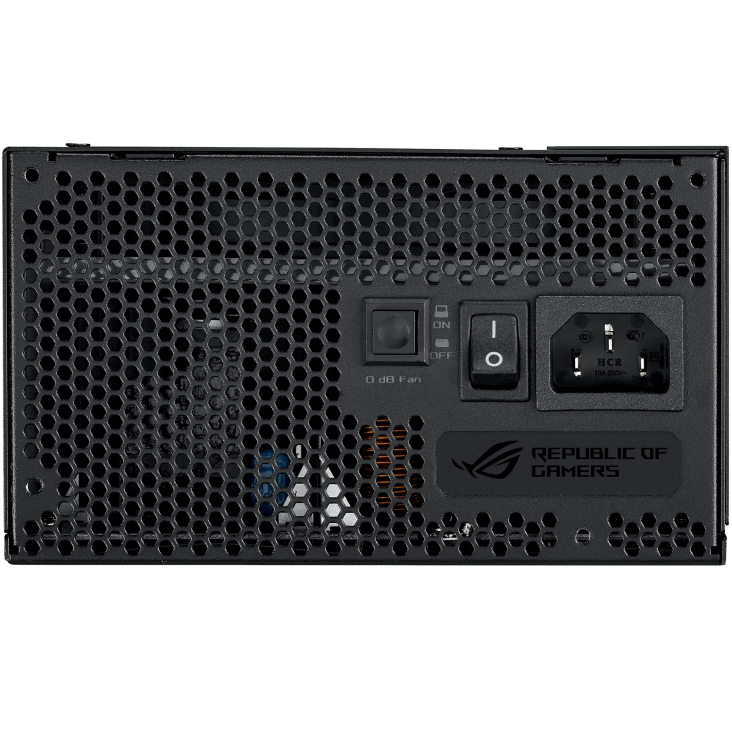

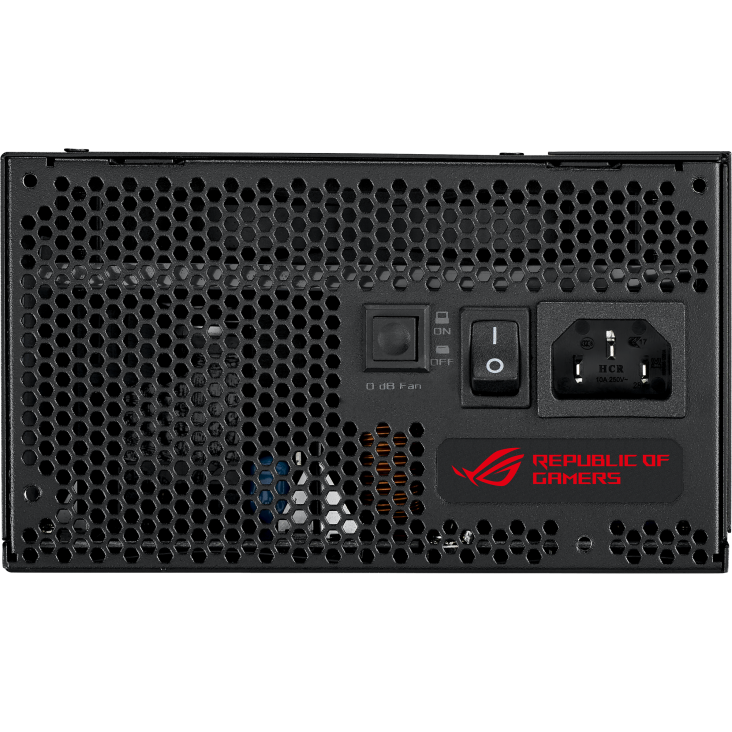

0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
