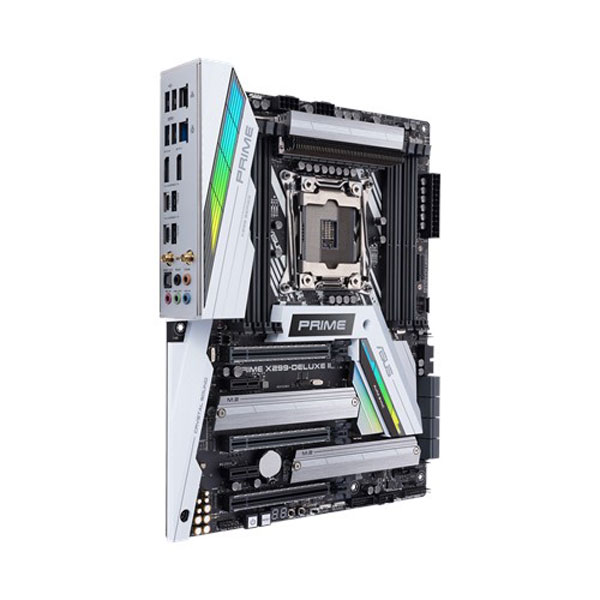

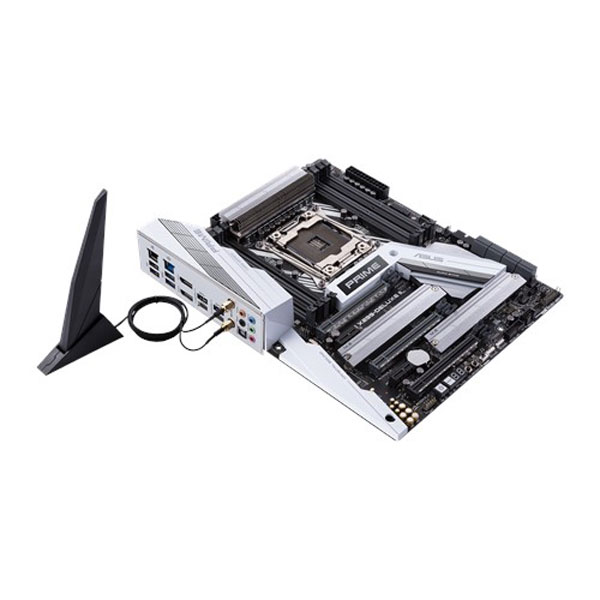

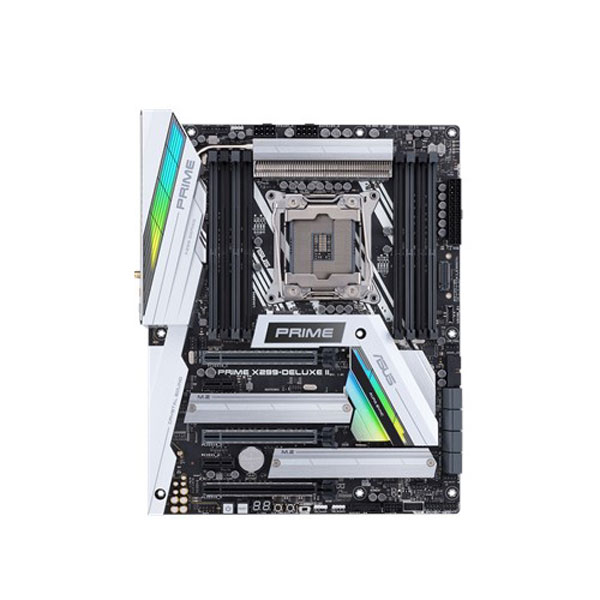

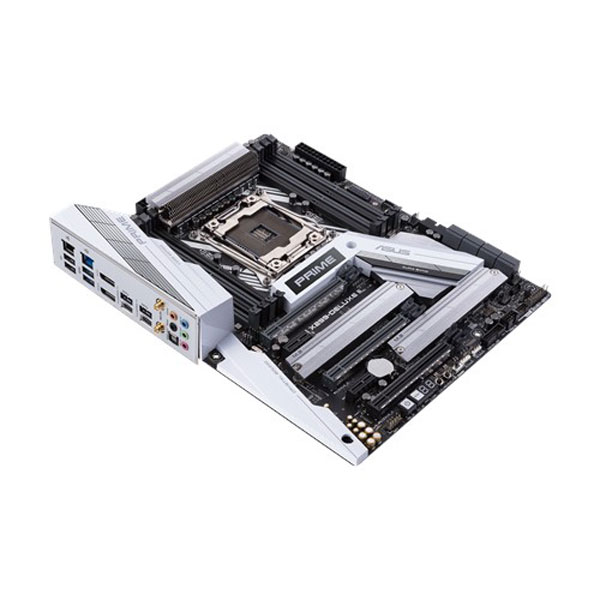

Asus ASUS Prime X299 Deluxe II ATX Motherboard ( Intel Socket 2066, For Intel Core X series processors, 8 RAM Slots, Max 256 GB Memory )
Availability:
Out of stock
ZERO PAYMENT GATEWAY CHARGES
FREE TRANSIT INSURANCE
₹49,995.00
Out of stock
CompareAsus ASUS Prime X299 Deluxe II ATX Motherboard ( Intel Socket 2066, For Intel Core X series processors, 8 RAM Slots, Max 256 GB Memory )
SPECIFICATION:
| CPU
|
Intel® Socket 2066 Core™ X-Series Processors |
| * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types | |
| * Refer to www.asus.com for CPU support list | |
| Chipset
|
Intel® X299 |
| Memory
|
Intel® Core™ X-series Processors (6-core above) |
| 8 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| * Hyper DIMM support is subject to the physical characteristics of individual CPUs. | |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Thunderbolt
|
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs |
| Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* | |
| * VGA resolution support depends on VGA cards’ resolution. | |
| Data transfer rate up to 40 Gbps | |
| Daisy-chain up to 12 Thunderbolt devices | |
| Up to 5V/3A, 15W charging support | |
| Multi-GPU Support
|
Supports NVIDIA® Quad-GPU SLI™ Technology |
| Supports NVIDIA® 3-Way SLI™ Technology | |
| Supports NVIDIA® 2-Way SLI™ Technology | |
| Supports AMD Quad-GPU CrossFireX™ Technology | |
| Supports AMD 3-Way CrossFireX™ Technology | |
| Expansion Slots
|
44-Lane CPU- |
| 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) | |
| 2 x PCIe 3.0/2.0 x1 * 1 | |
| 28-Lane CPU- | |
| 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) | |
| 1 x PCIe 3.0/2.0 x16 (x2 mode) * 2 | |
| 2 x PCIe 3.0/2.0 x1 * 1 | |
| Storage
|
|
| Intel® X299 Chipset : | 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) |
| 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
| 8 x SATA 6Gb/s port(s)* 1 | |
| Support Raid 0, 1, 5, 10 | |
| Intel® Rapid Storage Technology supports | |
| Intel® Core™ X-series Processors (6-core above) : | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
| Support Raid 0, 1, 5, 10 | |
| Intel® Rapid Storage Technology Enterprise supports | |
| Intel® Optane™ Memory Ready | |
| LAN
|
Aquantia AQC111C 5G LAN |
| Intel® I219V, 1 x Gigabit LAN | |
| ASUS Turbo LAN Utility | |
| ASUS LAN Guard | |
| Wireless Data Network
|
Intel® Wireless-AC 9260 |
| Wi-Fi 802.11 a/b/g/n/ac | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports MU-MIMO | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed | |
| Bluetooth
|
Bluetooth® 5.0 |
| Audio
|
Realtek® S1220A 8-Channel High Definition Audio CODEC |
| – Power pre-regulator reduces power input noise to ensure consistent performance | |
| – Impedance sense for front and rear headphone outputs | |
| – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Audio Feature : | – DTS Headphone:X |
| – Optical S/PDIF out port(s) at back panel | |
| – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
| – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
| – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | |
| – Unique de-pop circuit: Reduces start-up popping noise to audio outputs | |
| USB Ports
|
|
| Intel® Thunderbolt™ 3 Controller : | 2 x USB 3.1 Gen 2 port(s) (USB Type-C TM ) |
| ASMedia® USB 3.1 Gen 2 controller : * 1 | |
| 1 x USB 3.1 Gen 2 front panel connector port(s) | |
| Intel® X299 Chipset : | |
| 5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board) | |
| Intel® X299 Chipset : | |
| 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) | |
| ASMedia® USB 3.1 Gen 1 Hub : | |
| 3 x USB 3.1 Gen 1 port(s) (3 at back panel, ) | |
| Special Features
|
|
| OC Design – ASUS PRO Clock II Technology | |
| 5-Way Optimization by Dual Intelligent Processors 5 | |
| – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App | |
| ASUS 5X Protection III : | |
| – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage | |
| – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| – ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| – ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention | |
| – ASUS ESD Guards – Enhanced ESD protection | |
| 2 ” LiveDash | |
| AURA : | – Aura RGB Strip Headers |
| – Aura Lighting Effects Synchronization with compatible ASUS ROG devices | |
| – Aura Addressable Strip Header(s) | |
| ASUS Exclusive Features : | – USB BIOS Flashback ® |
| – MemOK! II | |
| – AI Suite 3 | |
| – Ai Charger | |
| – Onboard Button : Power/Reset | |
| – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | |
| – Turbo LAN | |
| – Pre- mounted I/O shield | |
| – ASUS NODE : hardware control interface | |
| ASUS Quiet Thermal Solution : | – Stylish Design Heat-pipe solution |
| – Stylish Fanless Design with M.2 Heat-sink solution | |
| ASUS Q-Design : | – ASUS Q-Code |
| – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) | |
| – ASUS Q-Slot | |
| – ASUS Q-DIMM | |
| – ASUS Q-Connector | |
| DIY Friendly Design | |
| – Procool | |
| – SafeSlot | |
| Q-Installer | |
| – Auto download driver and software. Friendly for first PC builder. | |

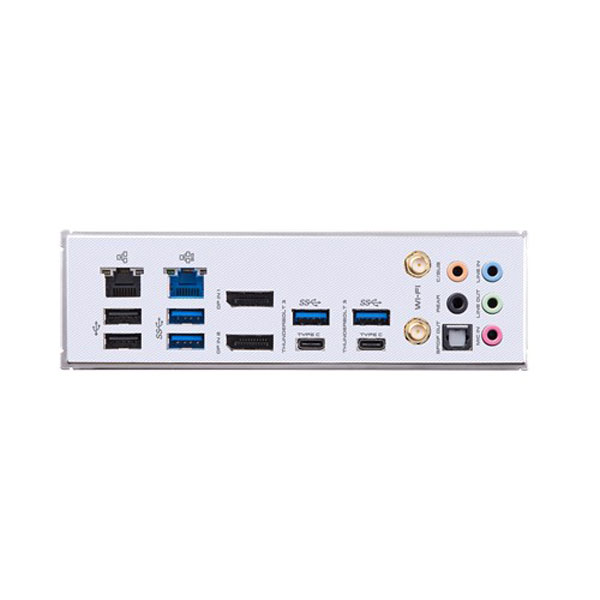

| Back I/O Ports
|
2 x Thunderbolt 3 ports TypeC ™ |
| 2 x DisplayPort IN ports for Thunderbolt™ 3 | |
| 1 x LAN (RJ45) port(s) | |
| 4 x USB 3.1 Gen 1 | |
| 2 x USB 2.0 (one port can be switched to USB BIOS Flashback ® ) | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0 | |
| 1 x AQC-111C 5G LAN port | |
| Internal I/O Ports
|
1 x Aura Addressable Strip Header(s) |
| 1 x AAFP connector | |
| 2 x Aura RGB Strip Header | |
| 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) | |
| 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x M.2_FAN connector | |
| 1 x VROC_HW_Key | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 2 x Chassis Fan connector(s) | |
| 1 x W_PUMP+ connector | |
| 1 x AIO_PUMP connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 2 x 8-pin EATX 12V Power connectors | |
| 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) | |
| 1 x MemOK! II switch(es) | |
| 1 x Thermal sensor connector(s) | |
| 1 x CPU OV | |
| 1 x Power-on button(s) | |
| 1 x Reset button(s) | |
| 1 x Clear CMOS button(s) | |
| 1 x Node Connector(s) | |
| 1 x USB BIOS Flashback ® button(s) | |
| 1 x USB 3.1 Gen 2 front panel connector | |
| 1 x Q-Code | |

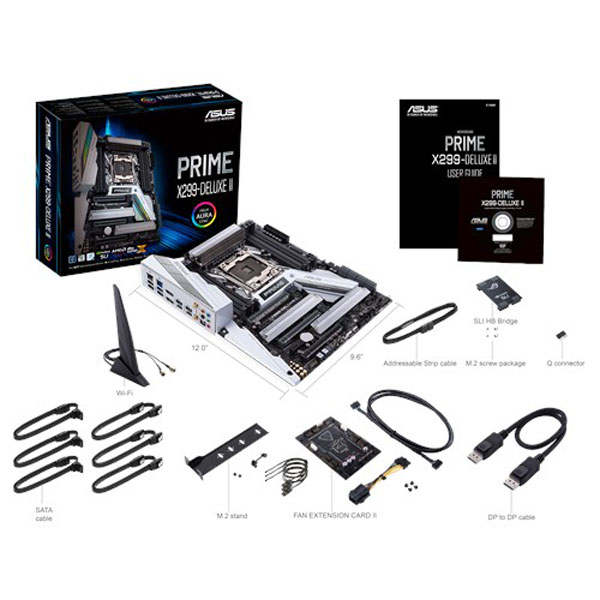

| Accessories
|
User’s manual |
| 1 x Vertical M.2 bracket set | |
| 6 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) | |
| 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) | |
| 1 x Fan Extension Card II power cable | |
| 1 x Fan Extension Card II NODE connector cable | |
| 1 x Fan Extension Card II screw package | |
| 1 x DisplayPort cable | |
| 1 x SLI HB BRIDGE(2-WAY-M) | |
| 1 x Q-Connector | |
| 1 x Extension cable for Addressable LED | |
| 3 x Thermistor cable(s) | |
| 1 x CPU Fan Holder | |
| BIOS
|
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability
|
WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Support Disc
|
Drivers |
| ASUS Utilities | |
| EZ Update | |
| Anti-virus software (OEM version) | |
| Operating System
|
Windows® 10 64-bit |
| Form Factor
|
ATX Form Factor |
| 30.5 cm x 24.4 cm (12 x 9.6 ) |
FEATURES:
Intel LGA 2066 ATX motherboard with enhanced VRM and M.2 heatsink design, DDR4 4266 (O.C.)MHz, 802.11ac Wi-Fi, triple M.2, Type-C Thunderbolt 3 ports, Intel VROC support
- 5-Way Optimization: One-click, system-wide tuning, delivering optimized overclocking and intelligent cooling for CPU or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
- Optimized thermal design: Enhanced fin-design VRM heatsink & M.2 heatsink for efficient cooling and optimal performance
- Next-gen connectivity: Aquantia 5Gbps LAN, Intel Wireless-AC 9260, two Thunderbolt 3 (Type-C) with DisplayPort 1.4, three M.2 and front USB 3.1 Gen 2 connector
- LiveDash: A 2-inch customizable onboard display that shows system temperature, CPU frequency, fan speeds or custom graphics and animations
- Pre-mounted I/O shield: Capable of withstanding electrostatic discharge and pre-fitted for easier system installation
