ASRock X470 Master SLI-ac ATX Motherboard ( AMD AM4 Socket, For Ryzen Series CPU, 4 Ram Slots, Max 64 GB Memory )
ASRock X470 Master SLI-ac ATX Motherboard ( AMD AM4 Socket, For Ryzen Series CPU, 4 Ram Slots, Max 64 GB Memory ) - Image 2
, ,

ASRock X470 Master SLI-ac ATX Motherboard ( AMD AM4 Socket, For Ryzen Series CPU, 4 Ram Slots, Max 64 GB Memory )

Asrock
Availability:

Out of stock
Compare

ZERO PAYMENT GATEWAY CHARGES
FREE TRANSIT INSURANCE

₹14,536.00

Out of stock

Compare

ASRock X470 Master SLI-ac ATX Motherboard ( AMD AM4 Socket, For Ryzen Series CPU, 4 Ram Slots, Max 64 GB Memory ):

Features:

  • Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
  • Supports DDR4 3466+ (OC)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • NVIDIA® Quad SLI™, AMD Quad CrossFireX™
  • Graphics Output: HDMI
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3)
  • 2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear)
  • Intel® Gigabit LAN, Intel® 802.11ac + BT 4.2

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Full Coverage M.2 Heatsink

A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Specefication:

CPU – Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) – Digi Power Design (Intersil) – 12 Power Phase design – Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset – AMD Promontory X470
Memory – Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory* – Max. capacity of system memory: 64GB** – 15μ Gold Contact in DIMM Slots
Graphic* – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Max. shared memory 4GB – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) – Supports HDCP with HDMI Port – Supports 4K Ultra HD (UHD) playback with HDMI Port *Actual support may vary by CPU
Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))* AMD Ryzen series CPUs (Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* – 4 x PCI Express 2.0 x1 Slots – Supports AMD Quad CrossFireX™ and CrossFireX™** – Supports NVIDIA® Quad SLI™ and SLI™** – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)* – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)*
Wireless LAN & Bluetooth – Intel® 802.11ac WiFi Module – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II
LAN – Gigabit LAN 10/100/1000 Mb/s – GigaLAN Intel® I211AT – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Audio – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Nichicon Fine Gold Series Audio Caps
Connector – 1 x COM Port Header – 1 x TPM Header – 1 x Power LED and Speaker Header – 1 x AMD Fan LED Header* – 1 x RGB LED Header** – 1 x Addressable LED Header*** – 1 x CPU Fan Connector (4-pin)**** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x AMD LED Fan USB Header – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) *The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. **Supports in total up to 12V/3A, 36W LED Strip ***Supports in total up to 5V/3A, 15W LED Strip ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use
Operating System Microsoft® Windows® 10 64-bit
Unique Features ASRock USB 3.1 Gen2 – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 45A Power Choke – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Sapphire Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB Intel® 802.11ac WiFi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Software and UEFI Software – ASRock A-Tuning – ASRock Polychrome RGB – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash – ASRock Easy RAID Installer
Hardware Monitor – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
Accessories – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 1 x ASRock SLI_HB_Bridge_2S Card – 2 x ASRock WiFi 2.4/5 GHz Antennas – 2 x Screws for M.2 Sockets
BIOS – 256Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Support Disc Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB

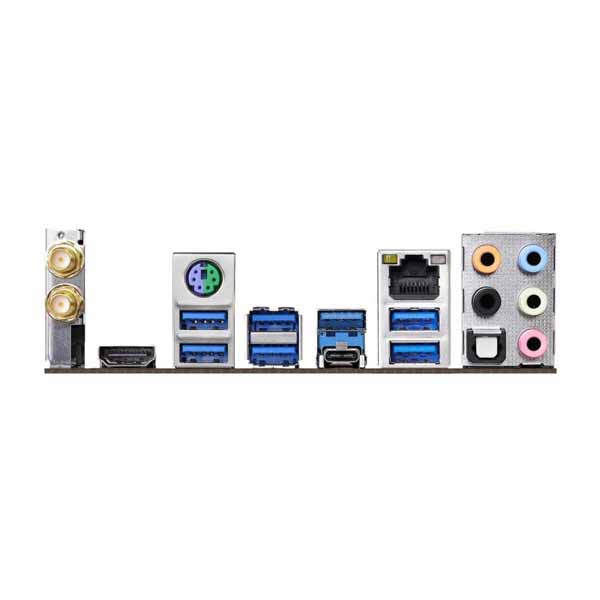

REAR I/O – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 6 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

SKU: X470 Master SLI/AC/A/CP Categories: , ,
