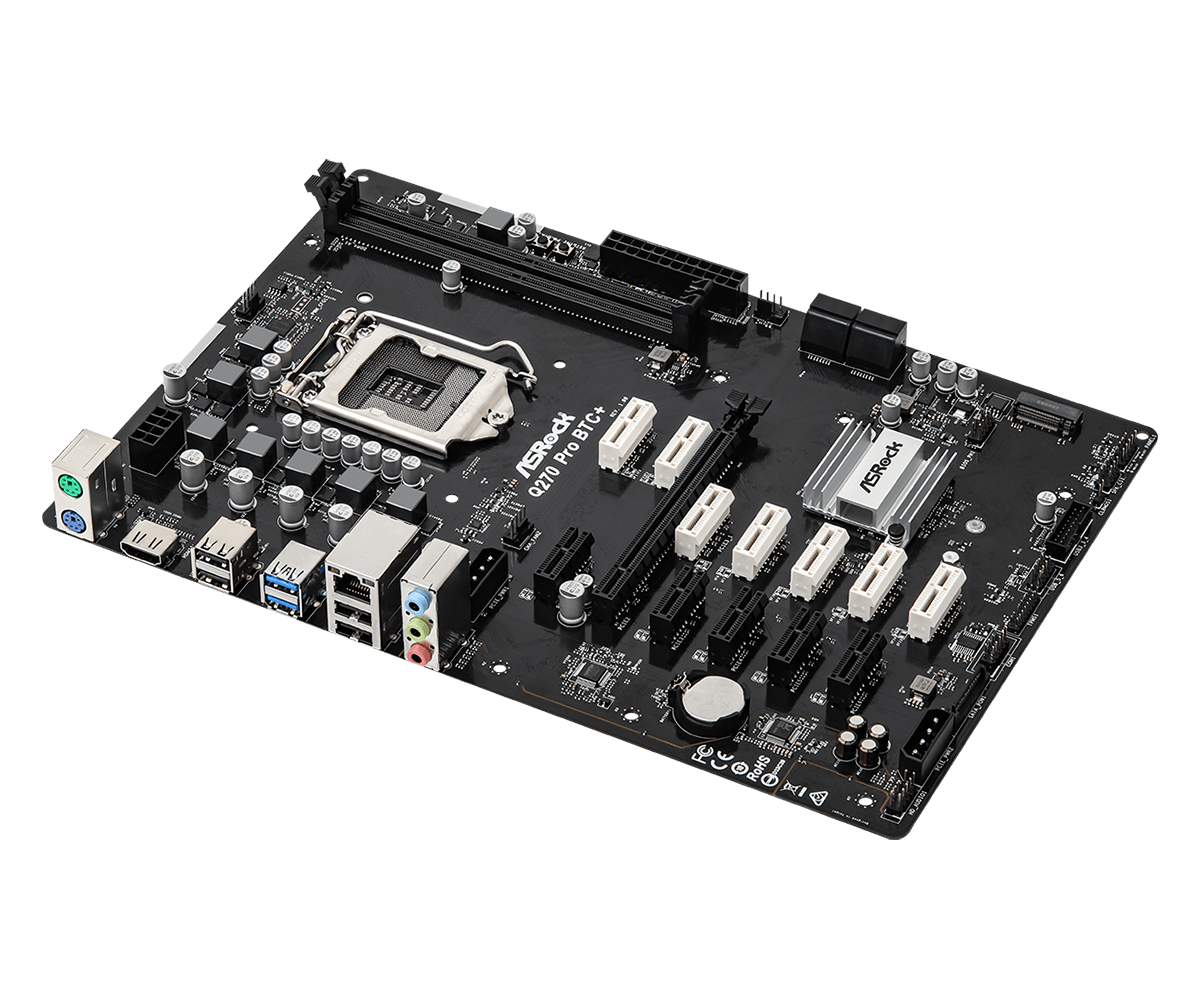

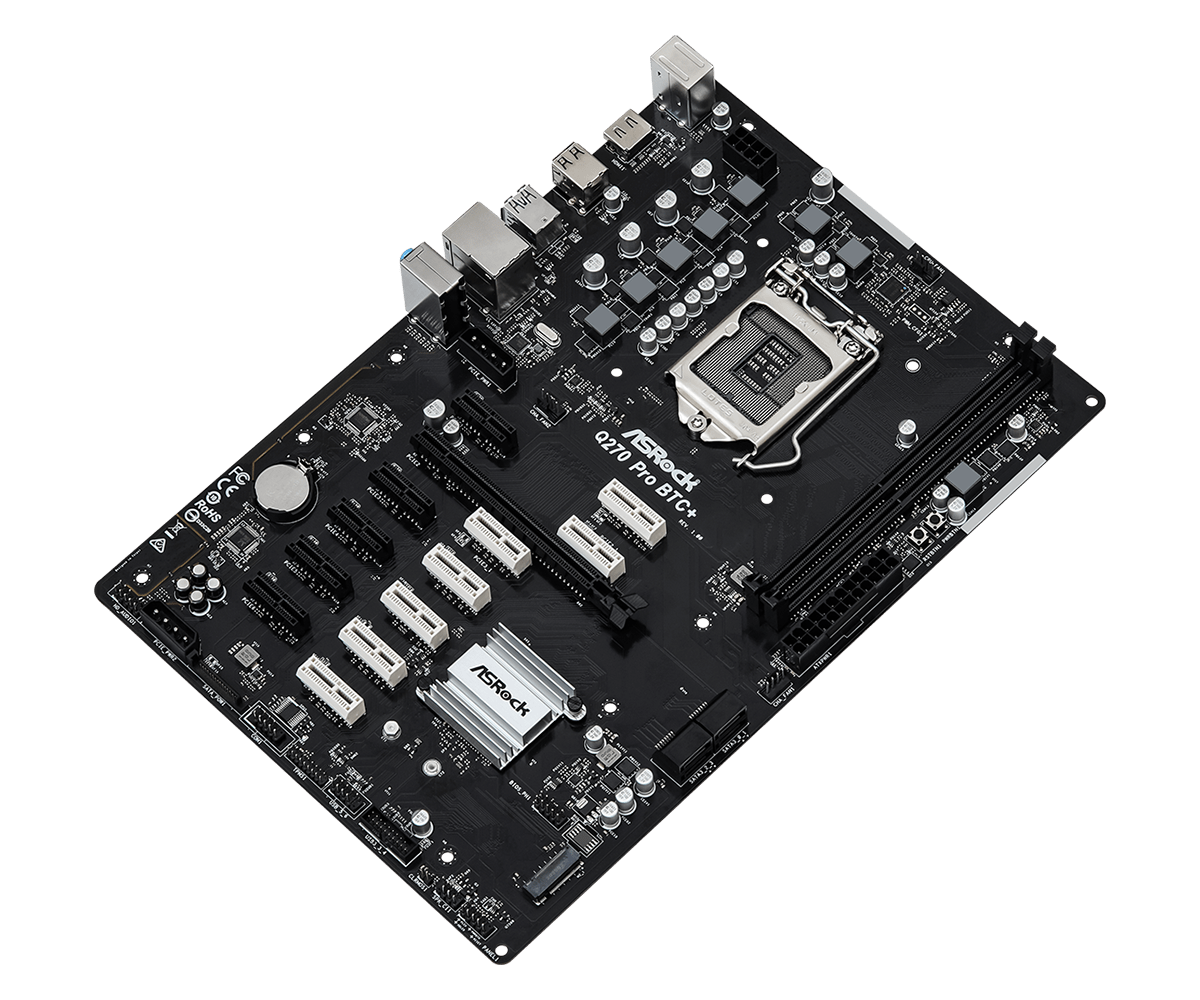

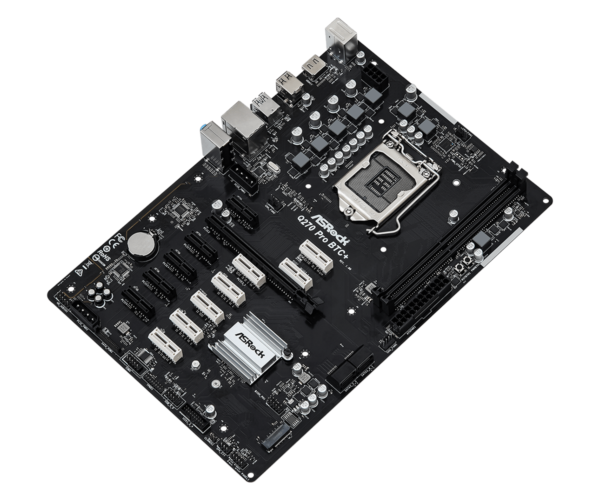

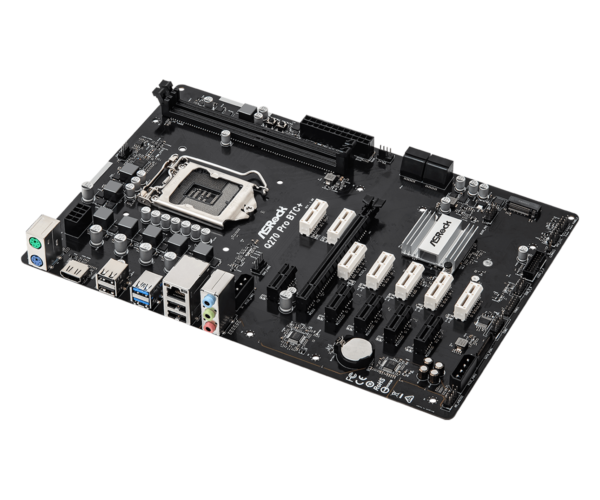

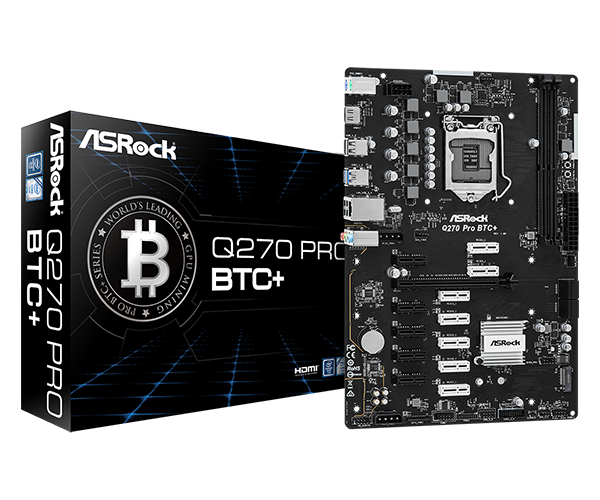

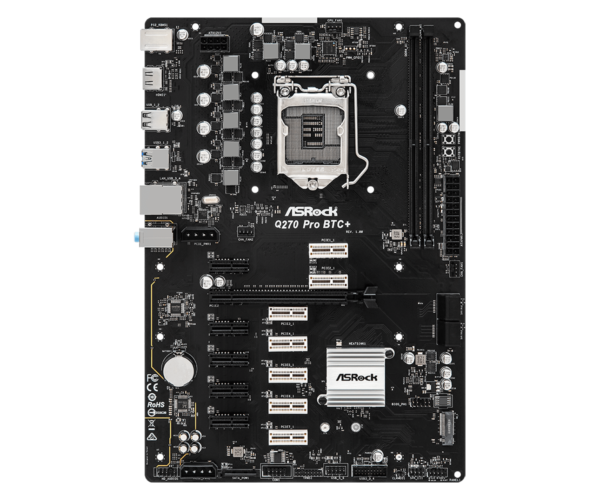

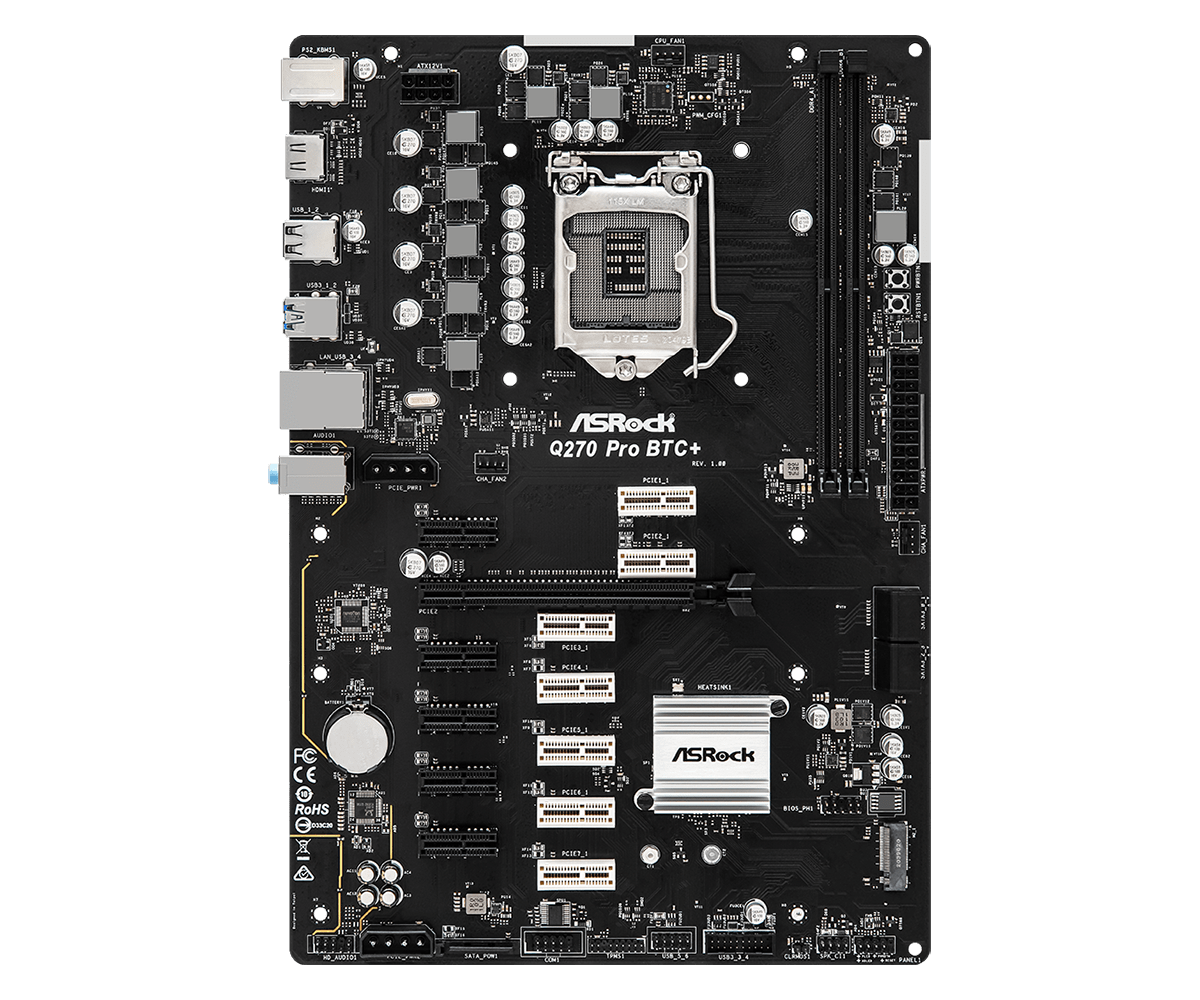

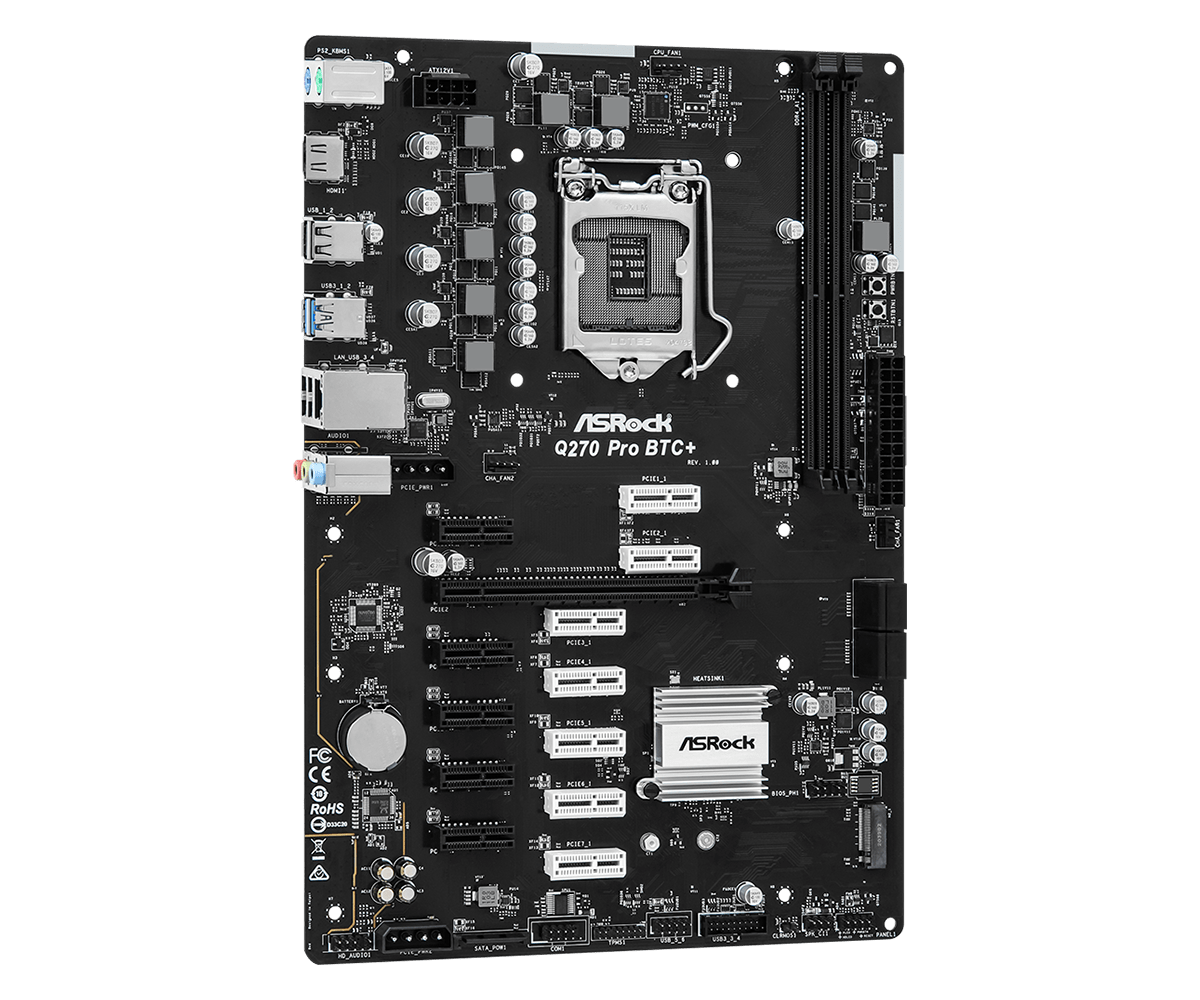

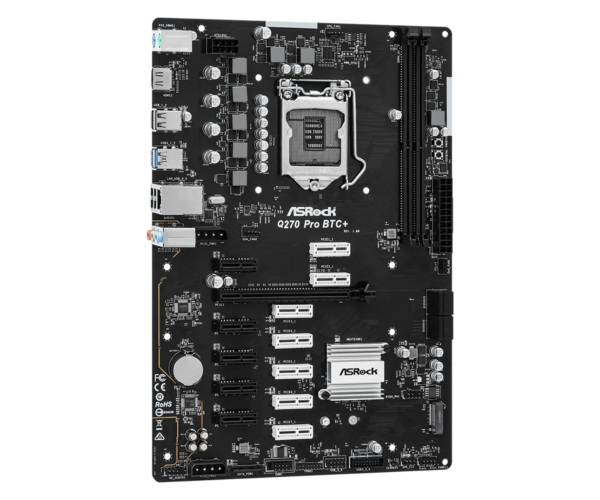

ASRock Q270 Pro BTC+ ATX Motherboard ( Intel Socket 1151, Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron CPU, 2 x DDR4 RAM Slots, Max 32GB RAM Support )

ASRock Q270 Pro BTC+ ATX Motherboard ( Intel Socket 1151, Supports 7^th and 6^th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron CPU, 2 x DDR4 RAM Slots, Max 32GB RAM Support )

• CPU

– Supports 7^th and 6^th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151)
– Supports CPU up to 91W
– Digi Power design
– 6 Power Phase design
– Supports Intel Turbo Boost 2.0 Technology

• Chipset

– Intel Q270

• Memory

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2400 / 2133 non-ECC, un-buffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 32GB**
– Supports Intel Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

*7th Gen Intel CPU supports DDR4 up to 2400; 6^th Gen Intel CPU supports DDR4 up to 2133.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS

– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO Voltage Multi-adjustment

• Graphics

– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with HDMI 1.4 Port
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI 1.4 Port

*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection

• LAN

– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

• Slots

– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 12 x PCI Express 3.0 x1 Slots

*Supports NVMe SSD as boot disks

• Storage

– 4 x SATA3 6.0 Gb/s Connectors
– 1 x M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module

• RAID

– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• Connector

– 1 x System Panel Header
– 1 x TPM Header
– 1 x COM Port Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 2 x PCIe Power Connectors
– 1 x SATA Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Power Button
– 1 x Reset Button

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

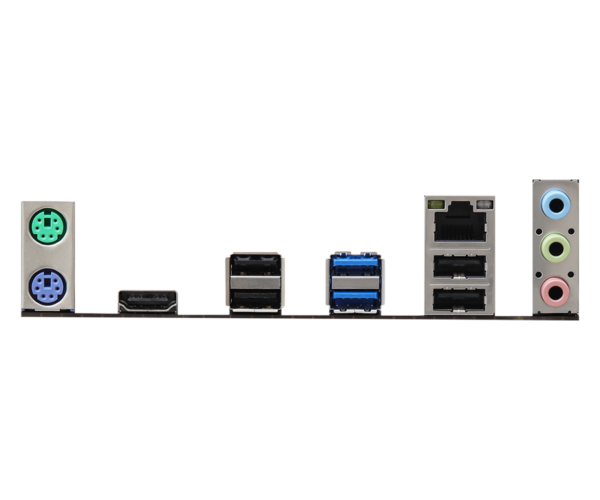

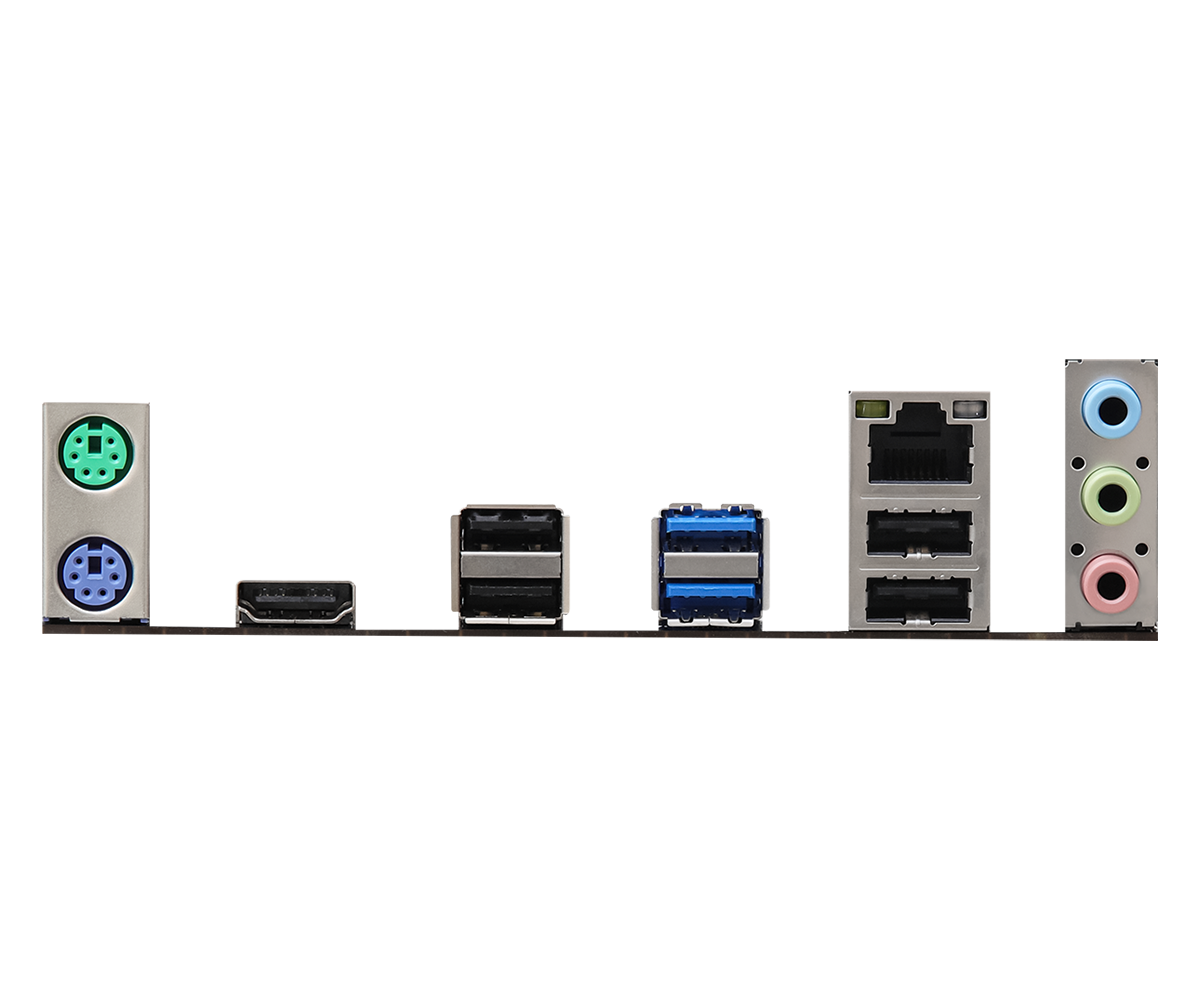

• Rear Panel I/O

– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

• Unique Feature

ASRock Super Alloy
– Premium 45A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop

• Support CD

– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Accessories

– I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

• Hardware Monitor

– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

• Form Factor

– ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
– Solid Capacitor design

• OS

– Microsoft Windows 10 64-bit (For 7^th Gen Intel CPU)
– Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6^th Gen Intel CPU)*
*To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.

• Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
