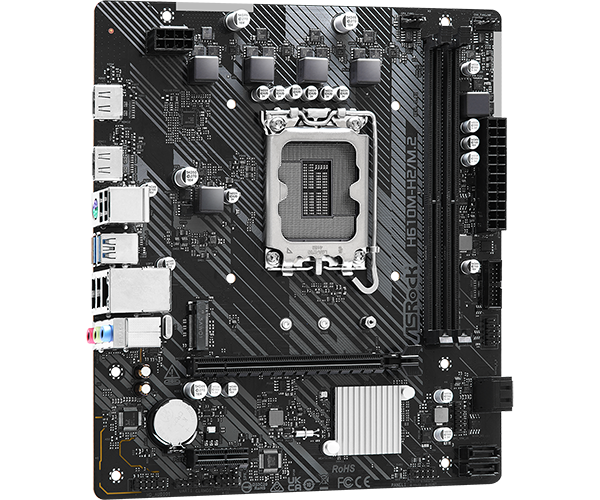

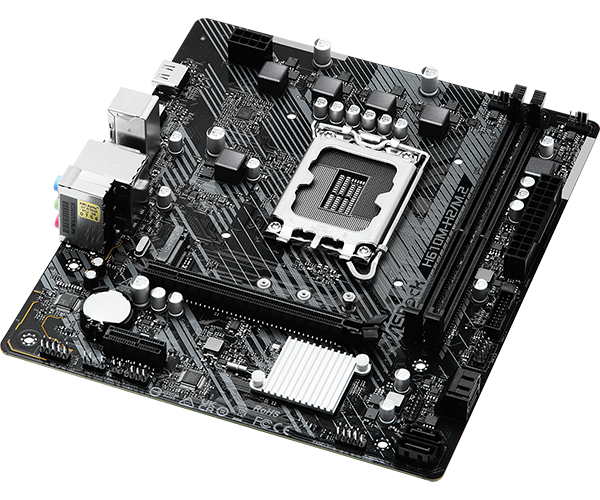

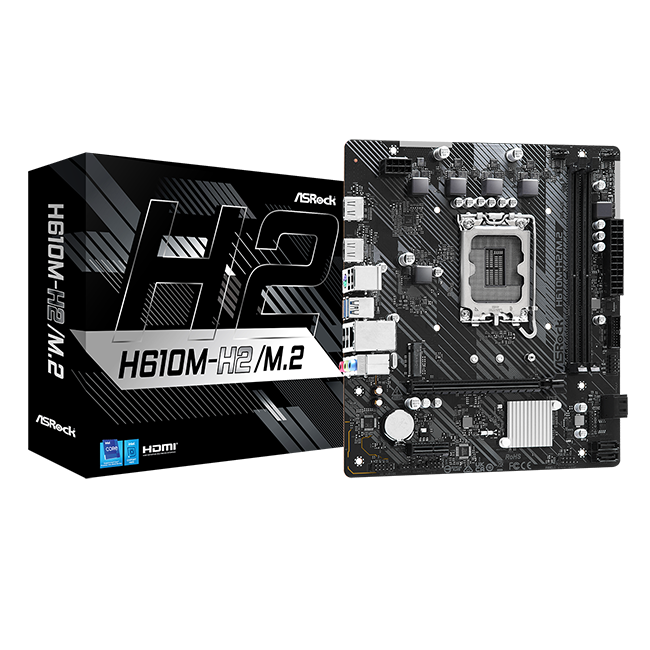

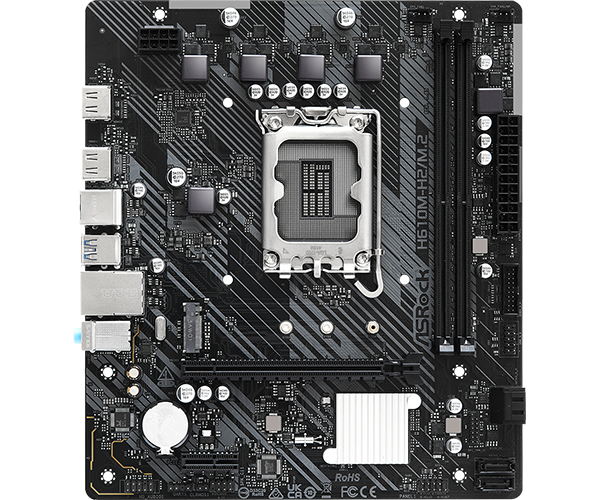

ASRock H610M-H2/M.2 Micro ATX Motherboard ( Intel Socket LGA1700, Support 14^th, 13^th & 12^th Gen Intel Core Cpu, 2 x DDR4 RAM Slots, Max 64GB  RAM Support )

• Unique Feature

Rock-Solid Durability
– 3+1+1 Power Phase
EZ Update
– ASRock Auto Driver Installer

• CPU

– Supports 14^th, 13^th & 12^th Gen Intel Core Processors (LGA1700)
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology

• Chipset

– Intel H610

• Memory

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 3200
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel Extreme Memory Profile (XMP) 2.0

• BIOS

– 128Mb AMI UEFI Legal BIOS with GUI support

• Graphics

– Intel Xe Graphics Architecture (Gen 12)
– 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN

– Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H

• Slots

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE2)*

* Supports NVMe SSD as boot disks

• Storage

Chipset:
– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

• USB

– 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
– 6 x USB 2.0 (4 Rear, 2 Front)

* All USB ports support ESD Protection

• Connector

– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

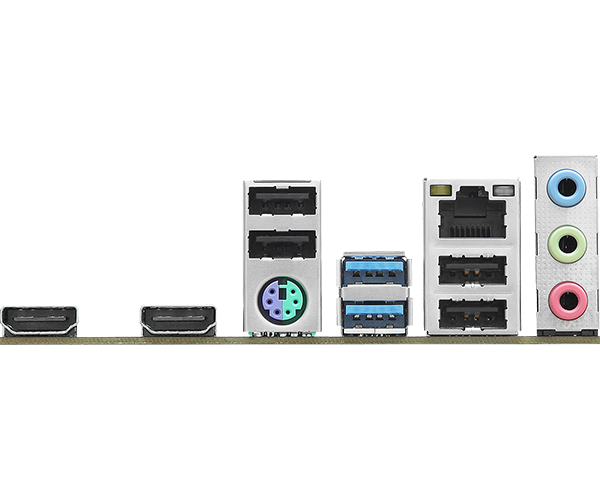

• Rear Panel I/O

– 1 x PS/2 Mouse/Keyboard Port
– 2 x HDMI Ports
– 2 x USB 3.2 Gen1 Type-A Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

Software
– ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

• Form Factor

– Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

• OS

– Microsoft Windows 10 64-bit / 11 64-bit

• Certifications

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
