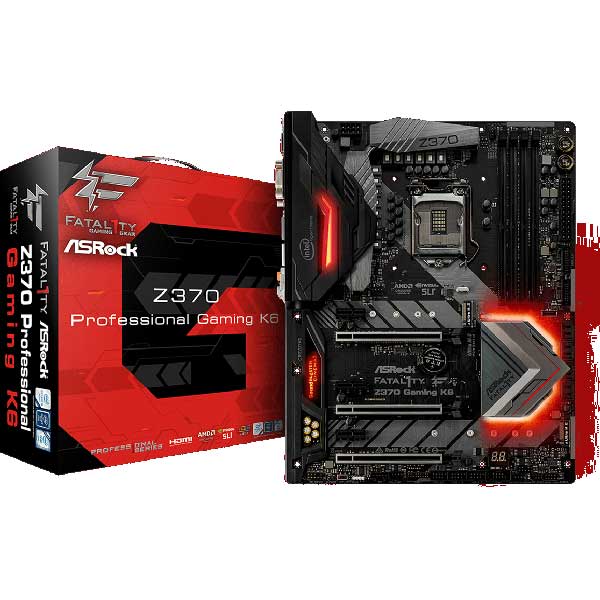

ASRock Fatal1ty Z370 Gaming K6 ATX Motherboard ( Intel Socket LGA1151, For 8th Gen Intel Core Processors, 4 Ram Slots, Max 64 GB Memory )

Gaming Armor

Power

– Hi-Density Power Connectors (24 pin and 8 pin)

Memory

– 15μ Gold Contact in DIMM Slots

VGA Card

– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Internet

– Intel® LAN

Cooling

– XXL Aluminum Alloy Heatsink

– Heat Pipe Design

Audio

– Creative Sound Blaster™ Cinema 3

Unique Feature

ASRock USB 3.1 Gen2

– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)

– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

– XXL Aluminum Alloy Heatsink

– Premium 60A Power Choke

– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)

– Dual-Stack MOSFET (DSM)

– Combo Caps (Nichicon 12K Black Caps)

– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

– I/O Armor

– Matte Black PCB

– High Density Glass Fabric PCB

ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology

ASRock Steel Slots

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Ultra USB Power

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

Supports 8th Generation Intel® Core™ Processors (Socket 1151)

– Digi Power design

– 12 Power Phase design

– Supports Intel® Turbo Boost 2.0 Technology

– Supports Intel® K-Series unlocked CPUs

– Supports ASRock BCLK Full-range Overclocking

– Supports ASRock Hyper BCLK Engine II

Chipset

Intel® Z370

Memory

Dual Channel DDR4 Memory Technology

– 4 x DDR4 DIMM Slots

– Supports DDR4 4333+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory

– Supports ECC UDIMM memory modules (operate in non-ECC mode)

– Max. capacity of system memory: 64GB**

– Supports Intel® Extreme Memory Profile (XMP) 2.0

– 15μ Gold Contact in DIMM Slots

BIOS

2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)

– Supports Secure Backup UEFI Technology

– ACPI 6.0 Compliant wake up events

– SMBIOS 2.7 Support

– CPU Core/Cache, GT Core/Cache, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

Graphics

Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics

– DirectX 12

– HWA Encode/Decode: VP9 8-bit, VP9 10- bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1

– Max. shared memory 1024MB**

– Three graphics output options: D-Sub, DVI-D and HDMI

– Supports Triple Monitor

– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz

– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz

– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz

– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

– Supports HDCP with DVI-D and HDMI Ports

– Supports 4K Ultra HD (UHD) playback with HDMI Port

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

– Premium Blu-ray Audio support

– Supports Surge Protection

– Nichicon Fine Gold Series Audio Caps

– 120dB SNR DAC with Differential Amplifier

– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)

– Pure Power-In

– Direct Drive Technology

– PCB Isolate Shielding

– Impedance Sensing on Front Out port

– Individual PCB Layers for R/L Audio Channel

– RGB LED

– Gold Audio Jacks

– 15μ Gold Audio Connector

– Supports Creative Sound Blaster™ Cinema 3

LAN

Gigabit LAN 10/100/1000 Mb/s

– 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT

– Supports Wake-On-LAN

– Supports Lightning/ESD Protection

– Supports Dual LAN with Teaming*

– Supports Energy Efficient Ethernet 802.3az

– Supports PXE

Slots

3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*

– 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

– Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™

– Supports NVIDIA® Quad SLI™ and SLI™

– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

– 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Storage

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*

– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Connector

1 x COM Port Header

– 1 x TPM Header

– 1 x Power LED and Speaker Header

– 1 x RGB LED Header*

– 1 x CPU Fan Connector (4-pin)**

– 1 x CPU Optional/Water Pump Fan Connector (4-pin)***

– 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

– 1 x Chassis Optional/Water Pump Fan Connector (4-pin)****

– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

– 1 x Thunderbolt™ AIC Connector (5-pin)

– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel® Z370) (Supports ESD Protection)

– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel® Z370) (Supports ESD Protection)

– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

– 1 x Front Panel Type C USB 3.1 Gen1 Header (ASMedia ASM1074 hub)

– 1 x Dr. Debug with LED

– 1 x Power Button with LED

– 1 x Reset Button with LED

– 1 x XMP Switch

Rear Panel I/O

2 x Antenna Ports

– 1 x PS/2 Mouse/Keyboard Port

– 1 x D-Sub Port

– 1 x DVI-D Port

– 1 x HDMI Port

– 1 x Optical SPDIF Out Port

– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)

– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)

– 4 x USB 3.1 Gen1 Ports (Intel® Z370) (Supports ESD Protection)*

– 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Software and UEFI

Software

– ASRock F-Stream

– ASRock RGB LED

– ASRock Key Master

– ASRock XFast LAN

UEFI

– ASRock EZ Mode

– ASRock Full HD UEFI

– ASRock My Favorites in UEFI

– ASRock Instant Flash

– ASRock Internet Flash

– ASRock Easy RAID Installer

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

Quick Installation Guide, Support CD, I/O Shield

– 4 x SATA Data Cables

– 1 x ASRock SLI_HB_Bridge_2S Card

– 3 x Screws for M.2 Sockets

Hardware Monitor

Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

– Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST

Form Factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

OS

Microsoft® Windows® 10 64-bit

Certifications

FCC, CE

– ErP/EuP ready (ErP/EuP ready power supply is required)
