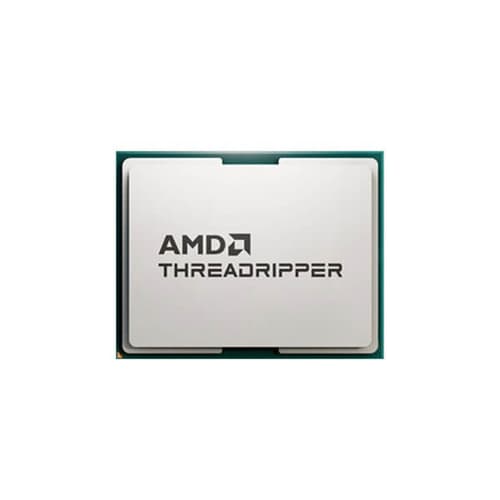

AMD Ryzen Threadripper 7960X Open Box OEM Desktop Processor 100-000001352 ( sTR5 Socket , 24 CPU Cores, 48  Threads, Up to 5.3 GHz Boost Clock, 153 MB Cache )

AMD Ryzen Threadripper 7960X Open Box OEM Desktop Processor 100-000001352 ( sTR5 Socket , 24 CPU Cores, 48  Threads, Up to 5.3 GHz Boost Clock, 153 MB Cache )

• General Specifications

Name:- AMD Ryzen Threadripper 7960X

Family:- Ryzen Threadripper

Series:- Ryzen Threadripper 7000 Series

Form Factor:- Desktops

Market Segment:- Enthusiast Desktop

AMD PRO Technologies:- No

Regional Availability:- Global

Former Codename:- Storm Peak

Architecture:- Zen 4

# of CPU Cores:- 24

Multithreading (SMT) :- Yes

# of Threads:- 48

Max. Boost Clock :- Up to 5.3 GHz

Base Clock :- 4.2 GHz

L1 Cache:- 1536 KB

L2 Cache:- 24 MB

L3 Cache:- 128 MB

Default TDP:- 350W

Processor Technology for CPU Cores:- TSMC 5nm FinFET

Processor Technology for I/O Die:- TSMC 6nm FinFET

CPU Compute Die (CCD) Size:- 71mm²

I/O Die (IOD) Size:- 388mm²

Package Die Count:- 5

Unlocked for Overclocking :- Yes

AMD EXPO Memory Overclocking Technology:- Yes

Precision Boost Overdrive:- Yes

Curve Optimizer Voltage Offsets:- Yes

CPU Socket:- sTR5

Supporting Chipsets:- TRX50

CPU Boost Technology:- Precision Boost 2

Instruction Set:- x86-64

Supported Extensions:- AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) :- Not Included

Max. Operating Temperature (Tjmax) :- 95°C

Launch Date:- 10/19/2023

*OS Support:- Windows 11 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

• Connectivity

Native USB 3.2 Gen 2 (10Gbps) :- 4

Native SATA Ports:- 2

PCI Express Version:- PCIe 5.0

Native PCIe Lanes (Total/Usable) :- 92 , 88

NVMe Support:- Boot , RAID0 , RAID1 , RAID10 , RAID5

System Memory Type:- DDR5

Memory Channels:- 4

System Memory Subtype:- RDIMM

System Memory Specification:- Up to 5200 MT/s

ECC Support:- Yes (Default Enabled)

• Graphics Capabilities

Graphics Model:- Discrete Graphics Card Required

• Product IDs

Product ID Tray:- 100-000001352

• Security, Virtualization, and Manageability

DASH support:- Yes

AMD Memory Guard:- Yes

AMD Secure Processor Support:- Yes

Windows Secure Boot Support:- Yes

UEFI Secure Boot Support:- Yes

Windows Device Guard Support:- Yes

Guest Mode Execution (GMET) Trap Support:- Yes

Virtualization-Based Security (VBS) Support:- Yes

Windows Secured-Core PC Support:- Yes

Firmware TPM:- Yes

AMD-V (SVM) Support:- Yes

AMD-V Nested Paging (RVI) Support:- Yes

AMD AVIC (Interrupt Virtualization) Support:- Yes

AMD-Vi (I/O MMU Virtualization) Support:- Yes

Second Level Address Translation (SLAT) Supported:- Yes

Advanced Encryption Standard New Instructions (AES-NI) :- Yes

AMD Enhanced Virus Protection (NX bit) :- Yes

FIPS Certification:- In Review

• Key Features

Supported Technologies:- AMD EXPO Technology , AMD Ryzen Technologies
