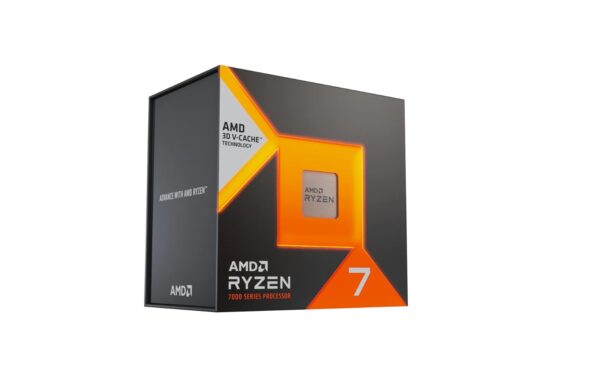

AMD Ryzen 7 7800X3D 7000 Series Desktop Gaming Processor 100-100000910WOF ( AM5 Socket, 8 CPU Cores, 16 Threads, Up to 5 GHz Max. Boost Clock, 104MB Cache, AMD Radeon Graphics )
- General Specifications
Name : AMD Ryzen 7 7800X3D
Family : Ryzen
Series : Ryzen 7000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Regional Availability : Global
Former Codename : Raphael AM5
Architecture : Zen 4
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5 GHz
Base Clock : 4.2 GHz
L1 Cache : 512 KB
L2 Cache : 8 MB
L3 Cache : 96 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 5nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
CPU Compute Die (CCD) Size : 71mm²
I/O Die (IOD) Size : 122mm²
Package Die Count : 2
AMD EXPO Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 89°C
Launch Date : 04/06/2023
*OS Support : Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
- Connectivity
Native USB 3.2 Gen 2 (10Gbps) : 4
Native USB 3.2 Gen 1 (5Gbps) : 0
Native USB 2.0 (480Mbps) : 1
Native SATA Ports : 0
PCI Express Version : PCIe 5.0
Native PCIe Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard
X670E : 12x Gen4
X670 : 12x Gen4
B650E : 8x Gen4
B650 : 8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 128 GB
System Memory Subtype : UDIMM
Max Memory Speed
2x1R : DDR5-5200
2x2R : DDR5-5200
4x1R : DDR5-3600
4x2R : DDR5-3600
ECC Support : Yes (Requires mobo support)
- Graphics Capabilities
Graphics Model : AMD Radeon Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C DisplayPort Alternate Mode : Yes
- Product IDs
Product ID Boxed : 100-100000910WOF
Product ID Tray : 100-000000910
- Key Features
Supported Technologies : AMD EXPO Technology , AMD Ryzen Technologies
