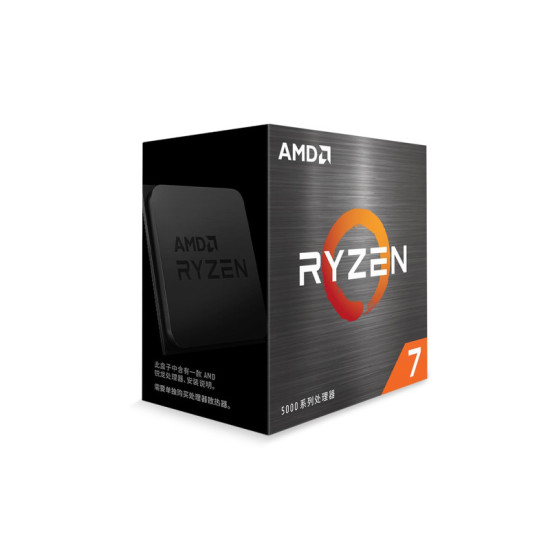

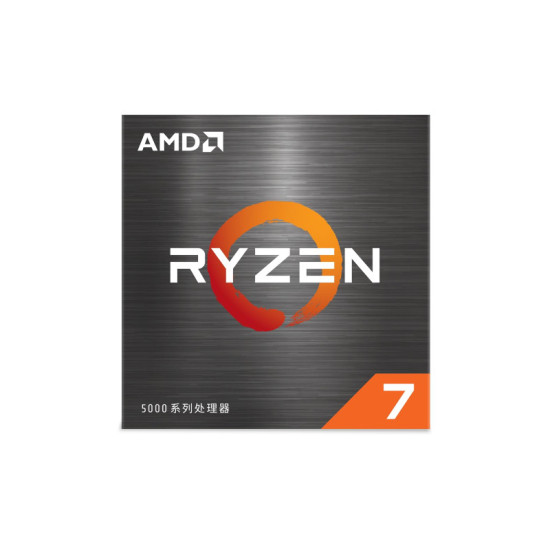

AMD Ryzen 7 5800XT 5th Generation AM4 Socket Desktop Processor 100-100001582BOX ( 8 Cores, 16 Threads, Up to 4.8 GHz Max. Boost Clock, 36 MB Cache )
General Specifications
- Name:-AMD Ryzen 7 5800XT
- Family:-Ryzen
- Series:-Ryzen 5000 Series
- Form Factor:-Boxed Processor , Desktops
- Market Segment:-Enthusiast Desktop
- Regional Availability:-Global
- Former Codename:-Vermeer
- Processor Architecture:-Zen 3
- # of CPU Cores:-8
- Multithreading (SMT) :-Yes
- # of Threads:-16
- Boost Clock :-Up to 4.8 GHz
- Base Clock :-8 GHz
- L1 Cache:-512 KB
- L2 Cache:-4 MB
- L3 Cache:-32 MB
- Default TDP:-105W
- Processor Technology for CPU Cores:-TSMC 7nm FinFET
- Processor Technology for I/O Die:-12nm (Globalfoundries)
- CPU Compute Die (CCD) Size:-74mm²
- I/O Die (IOD) Size:-125mm²
- Package Die Count:-2
- Unlocked for Overclocking :-Yes
- CPU Socket:-AM4
- Supporting Chipsets:-X570 , B550 , A520 , X470 , B450
- CPU Boost Technology:-Precision Boost 2
- Instruction Set:-x86-64
- Supported Extensions:-AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
- Thermal Solution (PIB) :-AMD Wraith Prism
- Operating Temperature (Tjmax) :- 90°C
- Launch Date:-07/31/2024
- *OS Support:-Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
- Native USB 3.2 Gen 2 (10Gbps) :- 4
- Native USB 3.2 Gen 1 (5Gbps) :- 0
- Native USB 2.0 (480Mbps) :- 0
- Native SATA Ports:- 2
- PCI Express Version:- PCIe 4.0
- Native PCIe Lanes (Total/Usable) :- 24 , 20
- Additional Usable PCIe Lanes from Motherboard:- amd_x570- 16x Gen 4,amd_x470- 2x Gen 3, 8x Gen 2
- NVMe Support:- Boot , RAID0 , RAID1 , RAID10
- System Memory Type:- DDR4
- Memory Channels:- 2
- Memory:- 128 GB
- System Memory Subtype:- UDIMM
- Max Memory Speed:- 2x1R:-DDR4-3200
- 2x2R:- DDR4-3200
- 4x1R:- DDR4-2933
- 4x2R:- DDR4-2667
- ECC Support:- Yes (Requires mobo support)
Graphics Capabilities
- Graphics Model :-Discrete Graphics Card Required
- Product IDs
- Product ID Boxed :-100-100001582BOX , 100-100001582CBX
- Product ID Tray :-100-000001582
- Product ID MPK :-100-100001582MPK , 100-100001582CPK
