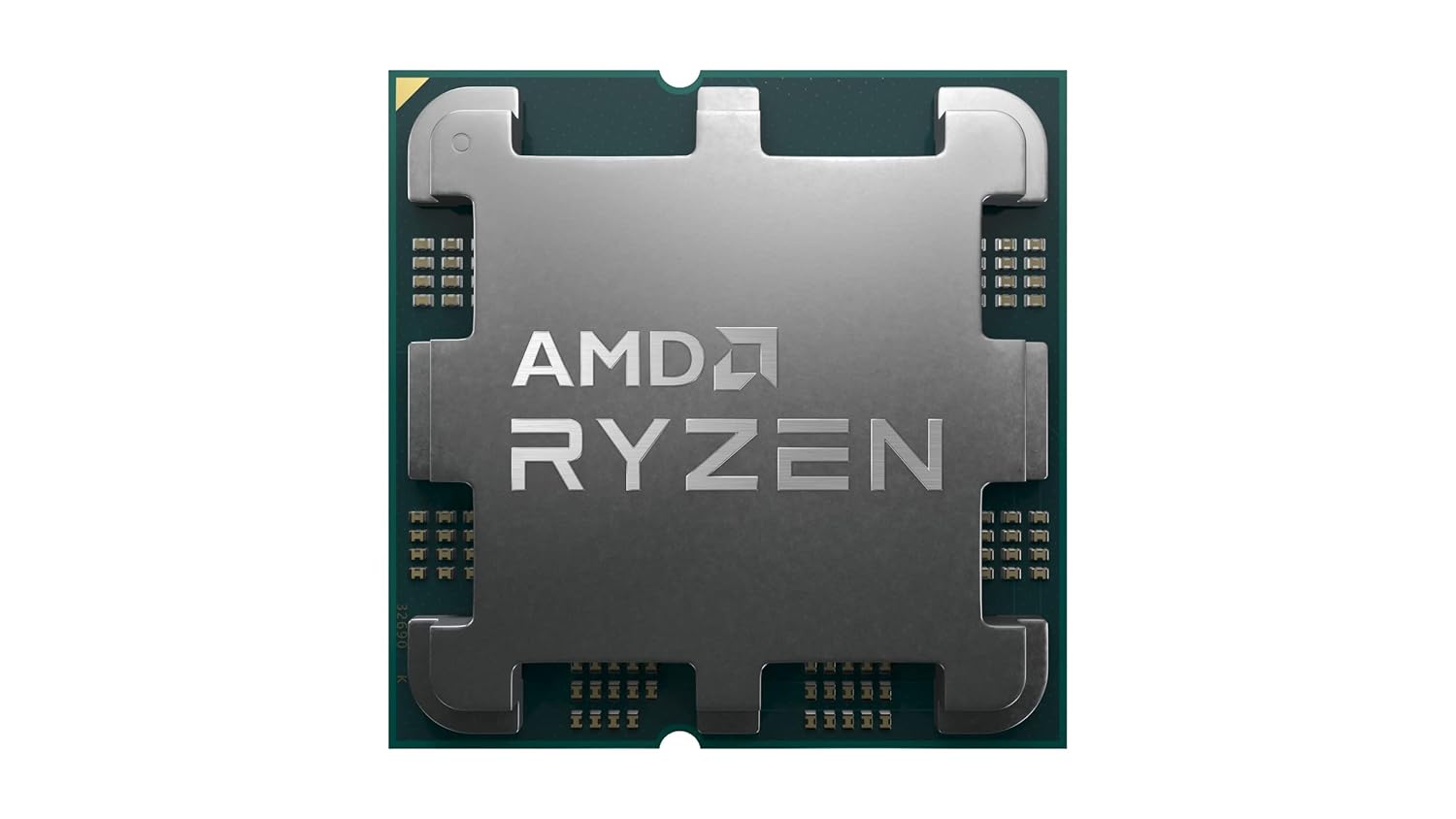

AMD Ryzen 5 7600X Ryzen 7000 Series Desktop Processor 100-100000593WOF  ( AM5 Socket, 6 CPU Cores, 12 Threads, Up to 5.3 GHz Max. Boost Clock, 38MB Cache, AMD Radeon Graphics )

AMD Ryzen 5 7600X Ryzen 7000 Series Desktop Processor 100-100000593WOF  ( AM5 Socket, 6 CPU Cores, 12 Threads, Up to 5.3 GHz Max. Boost Clock, 38MB Cache, AMD Radeon Graphics )

• General Specifications

Name :  AMD Ryzen 5 7600X

Family :  Ryzen

Series :  Ryzen 7000 Series

Form Factor :  Desktops , Boxed Processor

Market Segment :  Enthusiast Desktop

AMD PRO Technologies :  No

Regional Availability :  Global

Former Codename :  Raphael AM5

Architecture :  Zen 4

# of CPU Cores :  6

Multithreading (SMT) :  Yes

# of Threads :  12

Max. Boost Clock :  Up to 5.3 GHz

Base Clock :  4.7 GHz

L1 Cache :  384 KB

L2 Cache :  6 MB

L3 Cache :  32 MB

Default TDP :  105W

Processor Technology for CPU Cores :  TSMC 5nm FinFET

Processor Technology for I/O Die :  TSMC 6nm FinFET

CPU Compute Die (CCD) Size :  71mm²

I/O Die (IOD) Size :  122mm²

Package Die Count :  2

Unlocked for Overclocking :  Yes

AMD EXPO Memory Overclocking Technology :  Yes

Precision Boost Overdrive :  Yes

Curve Optimizer Voltage Offsets :  Yes

AMD Ryzen Master Support :  Yes

CPU Socket :  AM5

Supporting Chipsets :  A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology :  Precision Boost 2

Instruction Set :  x86-64

Supported Extensions :  AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) :  Not Included

Recommended Cooler :  Premium air cooler recommended for optimal performance

Max. Operating Temperature (Tjmax) :  95°C

Launch Date :  09/27/2022

*OS Support :  Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

• Connectivity

Native USB 3.2 Gen 2 (10Gbps) :  4

Native USB 3.2 Gen 1 (5Gbps) :  0

Native USB 2.0 (480Mbps) :  1

Native SATA Ports :  0

PCI Express Version :  PCIe 5.0

Native PCIe Lanes (Total/Usable) : 28 , 24

Additional Usable PCIe Lanes from Motherboard

X670E : 12x Gen4

X670 : 12x Gen4

B650E : 8x Gen4

B650 : 8x Gen4

NVMe Support : Boot , RAID0 , RAID1 , RAID10

System Memory Type : DDR5

Memory Channels : 2

Max. Memory : 128 GB

System Memory Subtype : UDIMM

Max Memory Speed

2x1R : DDR5-5200

2x2R : DDR5-5200

4x1R : DDR5-3600

4x2R : DDR5-3600

ECC Support : Yes (Requires mobo support)

• Graphics Capabilities

Graphics Model : AMD Radeon Graphics

Graphics Core Count : 2

Graphics Frequency : 2200 MHz

USB Type-C DisplayPort Alternate Mode : Yes

• Product IDs

Product ID Boxed : 100-100000593WOF

Product ID Tray : 100-000000593

• Key Features

Supported Technologies : AMD EXPO Technology , AMD Ryzen Technologies
