Model

Brand

AMD

Model

100-505957

Chipset

Chipset Manufacturer

AMD

GPU

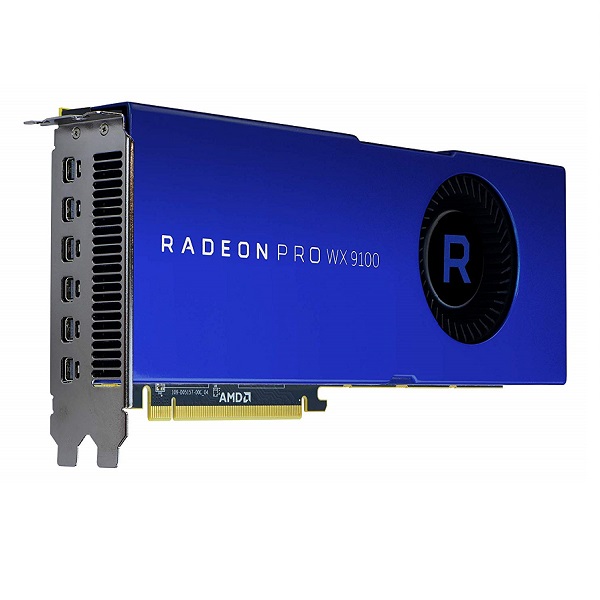

Radeon Pro WX 9100

Core Clock

1500 MHz

Stream Processors

4096 Stream Processing Units

Memory

Memory Clock

945 MHz

Memory Size

16GB

Memory Interface

2048-bit

Memory Type

HBM2

3D API

DirectX

DirectX 12.1

OpenGL

OpenGL 4.5

Ports

DisplayPort

6 x Mini DisplayPort 1.4

Details

CrossFire Supported

Yes

Cooler

With Fan

Virtual Reality Ready

Yes

HDCP Ready

Yes

Operating Systems Supported

Windows 7, Windows 10, Linux (64-bit)

System Requirements

Typical Board Power: <230W

Auxiliary Power Connector

1x 6-pin, 1x 8-pin power connection

Features

Features

HIGH BANDWIDTH CACHE CONTROLLER (HBCC)
The state of the art memory system found on the “Vega” GPU architecture removes the capacity limitations of traditional GPU memory. Thanks to automatic, fine-grained memory movement controlled by the high bandwidth cache controller, “Vega” GPUs equipped with HBCC enables creators and designers to work with much larger, more detailed models and assets in real time.

AMD SECURE PROCESSOR
The AMD Secure Processor is designed to facilitate all-day security. As soon as you power on your computer, the onboard AMD Secure Processor performs boot and firmware validation. During use, the AMD Secure Processor works in tandem with Microsoft’s Device Guard to thwart malicious attacks. During shutdown, the AMD Secure Processor continues securing graphics bound IP until device termination.

EFFICIENT GEOMETRY ENGINE
The new geometry pipe in the “Vega” GPU architecture processes millions of polygons due to its efficient load balancing. The Radeon Pro WX 9100 offers up to 2.6x peak geometry throughput per clock to significantly speed up modelling and design workflows in various rendering engines. Modelling applications will be able to render in real-time heavy 3D models and large scenes.

ENHANCED PIXEL ENGINE
Updated rasterizer technology to improve cache locality and overdraw, enhancing rendering efficiency and leaving more headroom to crank up quality settings while maintaining smooth 3D rendering.

RADEON VR READY CREATOR
Enable extraordinary performance and world-class innovation with Radeon VR Ready Creator products like the Radeon Pro WX 9100. Empower VR content creators and experience designers with amazingly powerful and capable development tools in the AMD LiquidVR SDK.

Form Factor & Dimensions

Slot Width

Dual-Slot
